Heavy Duty Shelves Wire Decorative Pallet Racks Industrial Shelves Storage Stacking Shelves Racks

Heavy duty shelves wire decking pallet racks industrial racking storage stacking racking shelves  Welfor pallet rack  is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility.It installs quickly and adjusts easil

Featured Products

Heavy duty shelves wire decking pallet racks industrial racking storage stacking racking shelves


Welfor pallet rack  is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility.It installs quickly and adjusts easily to your specific needs.
Heavy Duty Shelves Wire Decking Pallet Racks Industrial Racking Storage Stacking Racking Shelves

Heavy Duty Shelves Wire Decking Pallet Racks Industrial Racking Storage Stacking Racking Shelves


Features

1.100% accessibility to individual pallets;

2. Easy picking lower levels;

3. Good storage density;

4. Easily installed and repositioned;

5. No special lift trucks required;

Heavy Duty Shelves Wire Decking Pallet Racks Industrial Racking Storage Stacking Racking Shelves

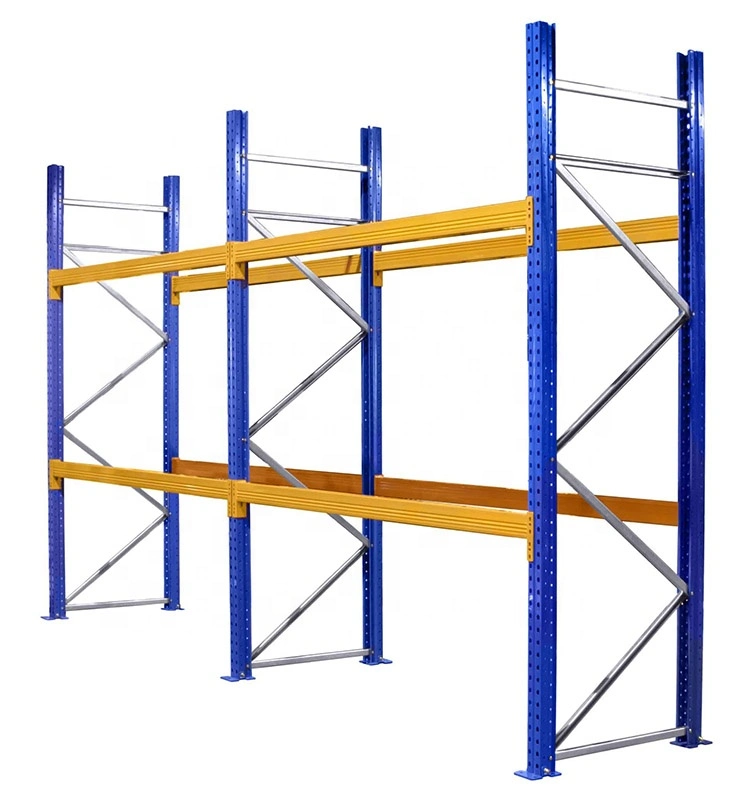

Technicial data for pallet rack

Style Pallet storage warehouse rack
Selection Single Row, back-to-back Rows and multiple Rows



Dimension of pallet rack
Standard Pallet:
1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220

Depth: 1000MM/900MM/1020MM

Width: 2700MM/2300MM/2500MM/2432MM

Height:  pitch is adjusted by increments of 75mm
 Customized Pallet: other special size( you can contact us directly)
Beam Range Height: 80~160mm;  Width: 45mm/50mm;  Thickness: 1.5~2.5mm
Upright Range 80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness: 1.5~3.0mm
Color

 Standard:
Customized:  MOQ( per 20FT container)
(welfor.en.made-in-china.com)
Weight Capacity5000KG per level max ; 1500KG per pallet max
PackageFull container:  Nude Package; manual handling

Less than container: steel pallets + steel straps + corrugated paper
Lead time15-20 days for one container

Production & Packing process
Heavy Duty Shelves Wire Decking Pallet Racks Industrial Racking Storage Stacking Racking Shelves

Heavy Duty Shelves Wire Decking Pallet Racks Industrial Racking Storage Stacking Racking Shelves

Please provide information for quick quotation

1.  Pallet Size (Length*Width*Loading Height in mm)

2.  Layout or Dimension (Length*Width*Net Height in mm) of your warehouse

3.  Rack Size (Length*Width*Depth in mm) if you are available or we shall design for you

4.  How many bays and levels if available

5.  Loading Capacity(kg) of each level or each pallet


FAQ
1, What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that  production can be better handled.


2, What is the lead time
++ As per 20FT container loading, manufacture time is about 10-15 days; Regarding some customized items 20-25 days will be covered.


3,  What is payments methods you can accept?
++ T/T and L/C are welcomed.


4, How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.


5, What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
